Door Transfer Grilles
Dimension Data
Door Transfer Grilles are designed to provide the maximum free area with a vision-proof inverted “V” core design, ensuring privacy while allowing efficient air transfer. These grilles are ideal for installation in doors, partitions, and return/exhaust air openings where the interior of the duct or plenum must remain concealed.
Manufactured from high-quality extruded aluminium sections, the inverted “V” louvers not only block visibility but also offer excellent strength and rigidity. When installed in the lower portion of a door, the grille is durable against impacts and maintains a clean, professional appearance over time.
Countersunk screw holes are provided as standard for a smooth, flush-mounted finish.
ALUGRIDX Door Transfer Grilles are available in all standard sizes as listed below.
| L mm | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | 600 | 700 |
Door Transfer Grilles are also available in 50 mm increments.

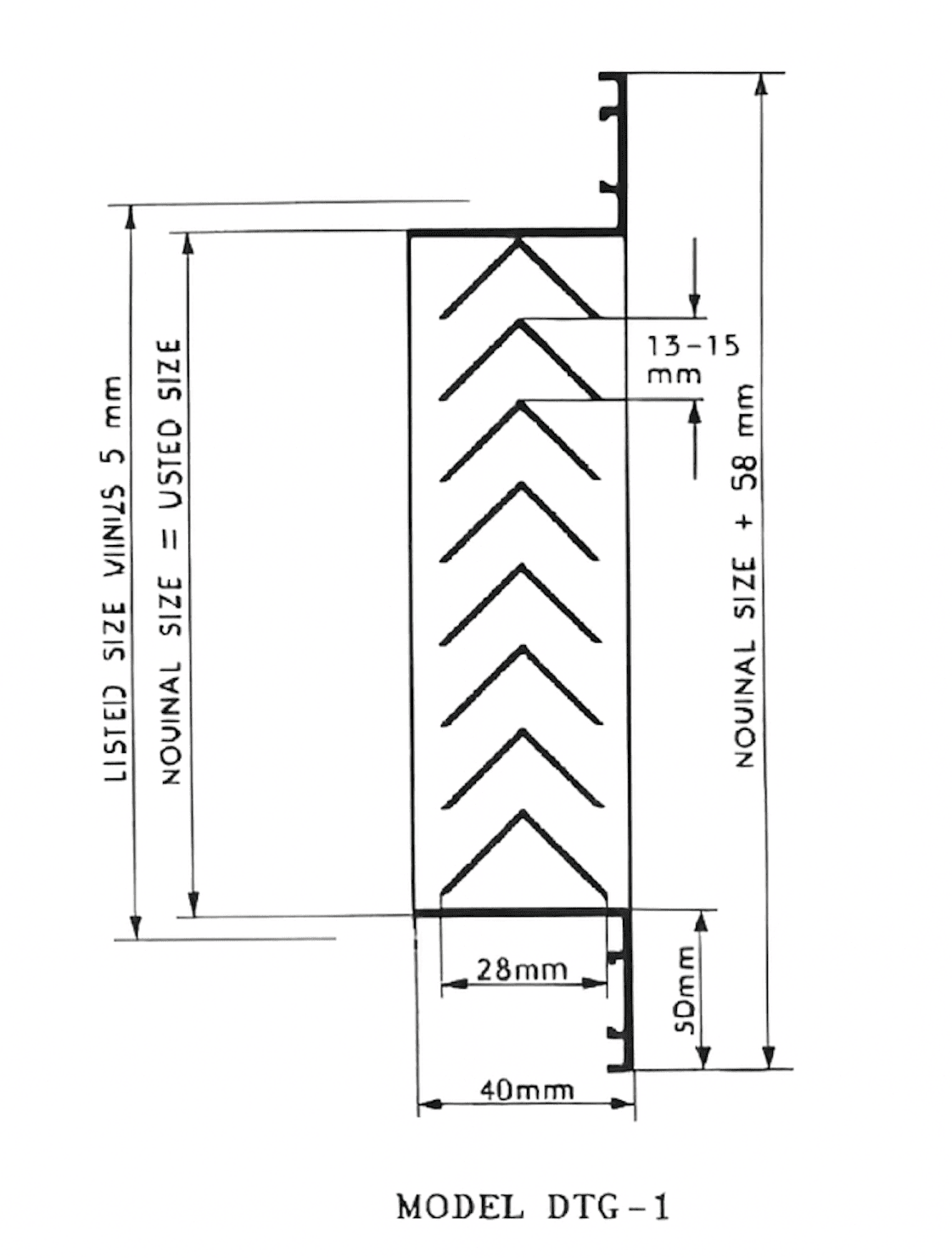

DTG-1 Door/Transfer grille with a fixed frame on one side.

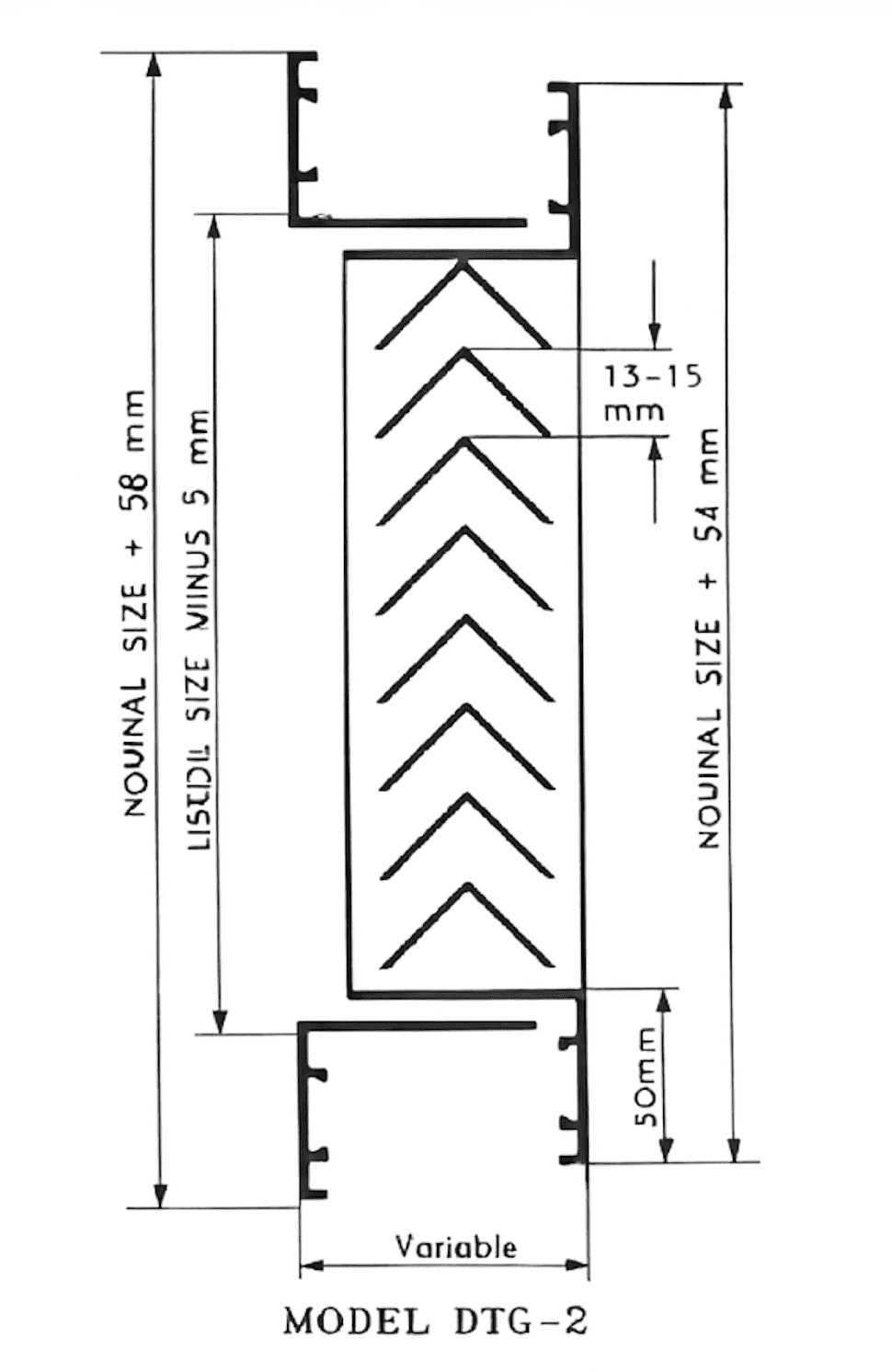

DTG-2 Door/Transfer grille with a fixed frame on one side and an additional removable frame on the other side.
Door Transfer Grilles are designed to provide the maximum free area with a vision-proof inverted “V” core design, ensuring privacy while allowing efficient air transfer. These grilles are ideal for installation in doors, partitions, and return/exhaust air openings where the interior of the duct or plenum must remain concealed.
Manufactured from high-quality extruded aluminum sections, the inverted “V” louvers not only block visibility but also offer excellent strength and rigidity. When installed in the lower portion of a door, the grille is durable against impacts and maintains a clean, professional appearance over time.
Countersunk screw holes are provided as standard for a smooth, flush-mounted finish.
ALUGRIDX Door Transfer Grilles are available in all standard sizes as listed below.
| L mm | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| W mm | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
Door Transfer Grilles are also available in 50 mm increments.

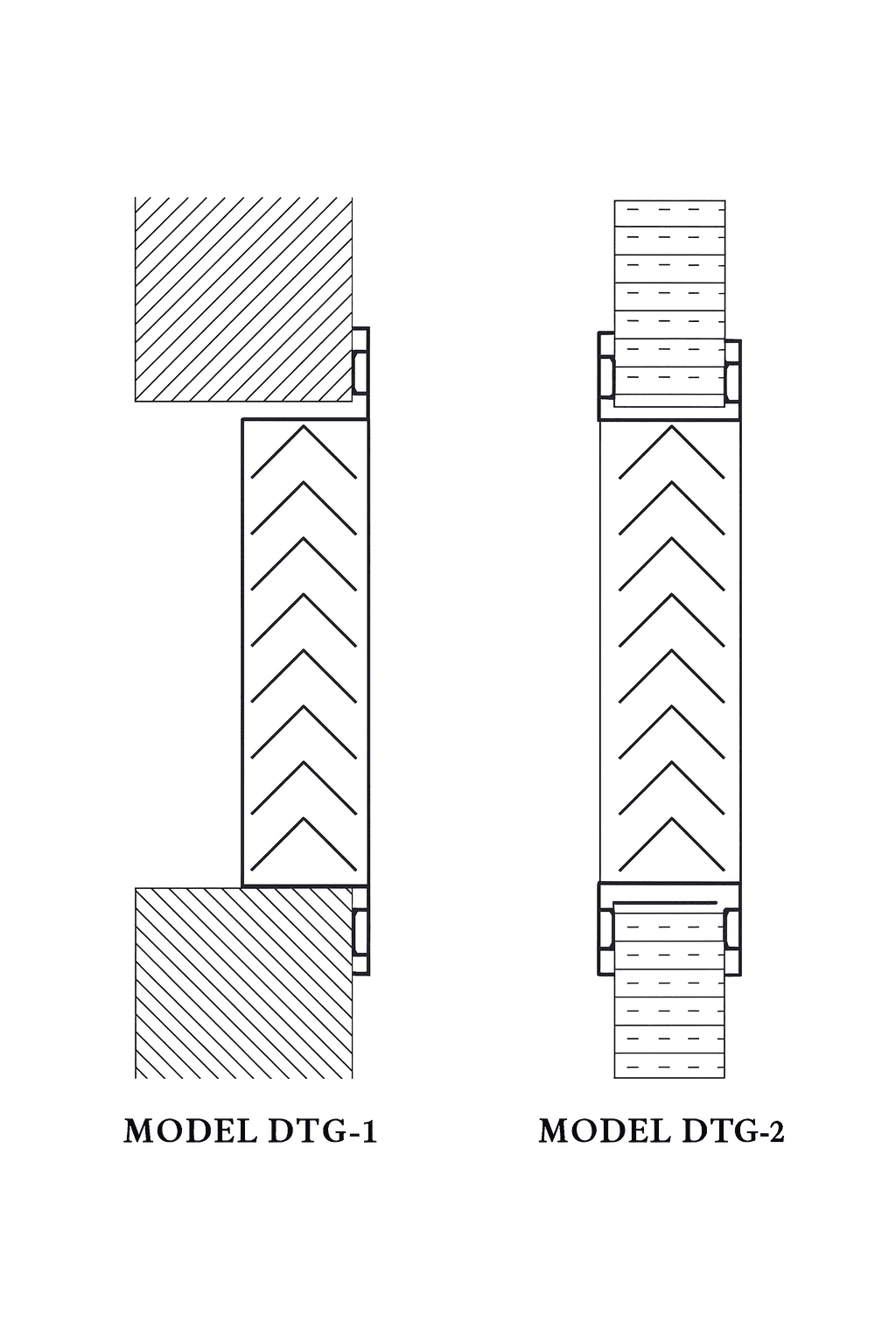

Installation Details
AVAILABLE FINISHES
Natural anodized aluminum
Powder-coated color finish
Golden/bronze anodized aluminum
ORDERING PROCEDURES
Example:
| Model no. | size | quantity | fixing | finish |
|---|---|---|---|---|
| DTG-1 | 600 x 300 | 17 | 'S' (standard) | POWER COATED |
Suggested Sound Levels
| Category | Application | Sound Level dB A | NC |
|---|---|---|---|
| Large Buildings | Radio and TV studios | 25-30 | 20-25 |
| Large Buildings | Concert and Opera halls | 25-35 | 20-30 |
| Large Buildings | Churches | 25-35 | 20-30 |
| Large Buildings | Cinemas | 35-45 | 30-40 |
| Large Buildings | Banquet halls | 40-50 | 35-45 |
| Hospitals | Private rooms | 30-40 | 25-35 |
| Hospitals | Operation theaters | 35-45 | 30-40 |
| Hospitals | Waiting rooms | 40-50 | 35-45 |
| Offices | Board rooms | 25-35 | 20-30 |
| Offices | Conference rooms | 30-40 | 25-35 |
| Offices | Executive offices | 35-45 | 30-40 |
| Offices | General open offices | 35-45 | 30-40 |
| Offices | Typing pools | 40-50 | 35-45 |
| Offices | Computer rooms | 45-65 | 40-55 |
| Hotels/Restaurants/Stores | Rooms | 30-40 | 25-35 |
| Hotels/Restaurants/Stores | Restaurants | 35-45 | 30-40 |
| Hotels/Restaurants/Stores | Stores | 30-50 | 35-45 |
| Hotels/Restaurants/Stores | Supermarkets | 45-55 | 40-50 |
| Residential Buildings | Single family homes (rural & suburban) | - | 20-30 |
| Residential Buildings | Single family homes (urban) | - | 25-35 |
| Damage Risk Criteria | Damage risk criteria | 85 | - |
